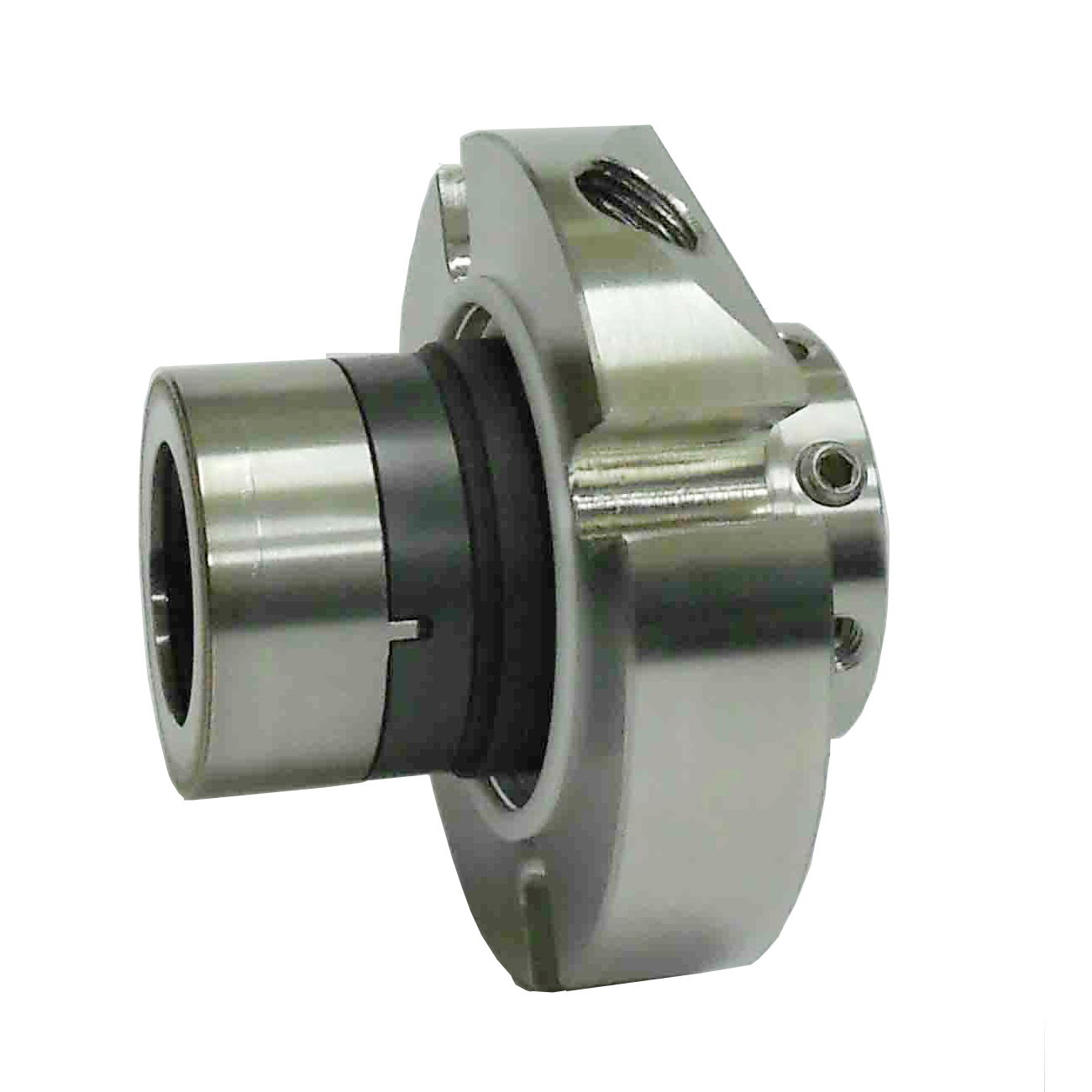

Westside Ltd, mechanical seal, FC5A series

Type FW510

Applicable Industry :
•Mining and Ore Processing
•Water & Waste Water
•Chemical Processing
•Petrochemical Processing
•Pharmaceutical
•Food & Beverage Processing

Performance Parameter:
•Seal Length：25mm to 100mm（1inch to 4inches）•Material Components: KALREZ/ Carbon/ SSIC/ HAS-C
•Temperature：-20°C to 320°C
•Pressure：0 to 20kg/cm² G
•Shaft Speed：MAX 20 m/s
•Viscosity：MAX 500cp (0.5Pa.s)
•Slurry Content：0.5 to 10 wt%

Features:
•Rotary and balancing design tolerates high pressure
•Isolated spring design reduces potential clogging by media residue.
•Integrated stationary and rotary face design reduces wear and increases stability in high-level vibration applications.
•Lubrication cannel removes the need for pump shell installation.
•Short Working parts well-suited even in narrow spaces.
•Consolidated design and fitting procedure, ideal for simple replacements.

Material Contents:
•Face material: Carbon, Silicon Carbide, Tungsten Carbide
•Rubber Packing：VITON, EPDM, KALREZ, PTFE
•Metal Components：SUS316, HAS-C

Dimensions of Type FW510
